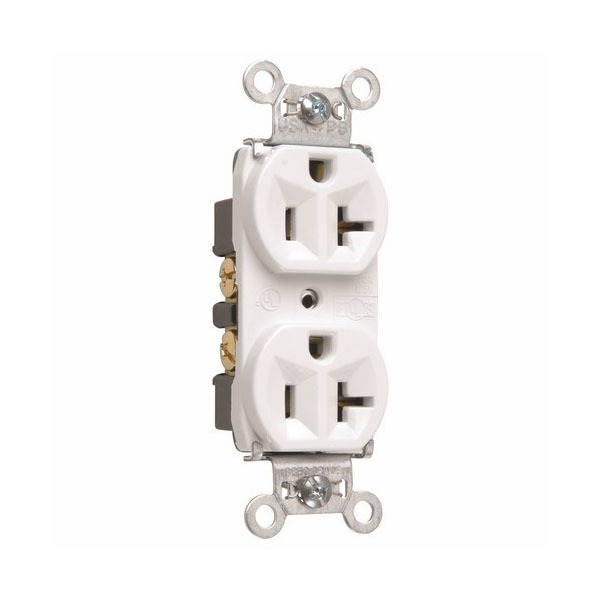

20 A Duplex Receptacle; 125 VAC; 5-20R; White; Heavy Duty Specification Grade

Mfr: PASS & SEYMOUR BY LEGRAND

UPC: 78500753625

Catalog #: 5362-W

Item #: PS 5362W

Alt. Part #: 5362W

IN STOCK

Product must be purchased in multiples of 1 at a minimum quantity of 1

Hard Use Spec Grade Duplex Receptacle Back and Side Wire 20amp 125volt White

Corrosion-resistant, plated and tabbed steel strap locked in to face and back body to resist pulling away from face/body assembly.
.032 inch thick, brass, triple-wipe power contacts for lasting retention.
Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
Impact-resistant nylon face.
8 hole internal screw-pressure-plate back wire terminals accept #10 - #14 AWG solid or stranded copper or copper-clad conductors.
Terminal compartments isolated from each other for positive conductor containment.
Tri-drive terminal and mounting screws.
Auto-ground clip assures positive ground.

SPECIFICATIONS

Overview

Hard Use Spec Grade Duplex Receptacle Back and Side Wire 20amp 125volt White

Corrosion-resistant, plated and tabbed steel strap locked in to face and back body to resist pulling away from face/body assembly.
.032 inch thick, brass, triple-wipe power contacts for lasting retention.
Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
Impact-resistant nylon face.
8 hole internal screw-pressure-plate back wire terminals accept #10 - #14 AWG solid or stranded copper or copper-clad conductors.
Terminal compartments isolated from each other for positive conductor containment.
Tri-drive terminal and mounting screws.
Auto-ground clip assures positive ground.

Local Description

WHT DPLX RCPT-NEMA5-20R

Voltage, Rating

125 VAC

NEMA Type

5-20R

Color

White

Grade

Heavy Duty Specification Grade

Material

Nylon

Number of Poles

2 Pole

Current, Rating

20 A

Type

Duplex

Approvals

UL, CSA
